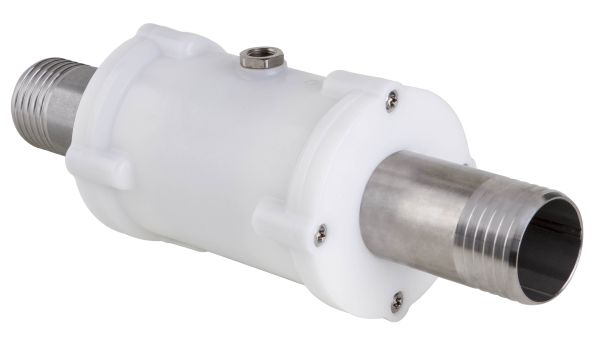

Now also available – the threaded hose nozzles type SAS, as a single component or screwed into the pinch valve.
The flexible solution for hose connections of various kinds such as suction/discharge hoses on plants, machinery or vehicles.
Threaded hose nozzles type SAS are available in diameters DN10-80, and by default are manufactured and offered in stainless steel AISI 316L (1.4404).

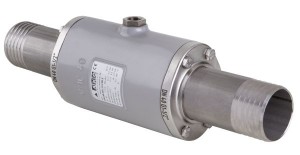

They can interconnect with any air operated pinch valve series of VMC, VMP and VF with internally threaded ends.
Threaded hose nozzles are mounted on a flexible tube that is placed over the hose spigot from the outside with a hose clamp.
With this type of installation/integration of the air operated pinch valve on or in your plant, compared with flanged or internal threaded (female) versions, precious time is saved during the installation and removal of the air operated pinch valve sleeve when being replaced.
Connections
External thread: DIN EN ISO 228 “G”
Threaded hose nozzle connection
Buttress thread, to ensure a better grip of the tube.
